Description

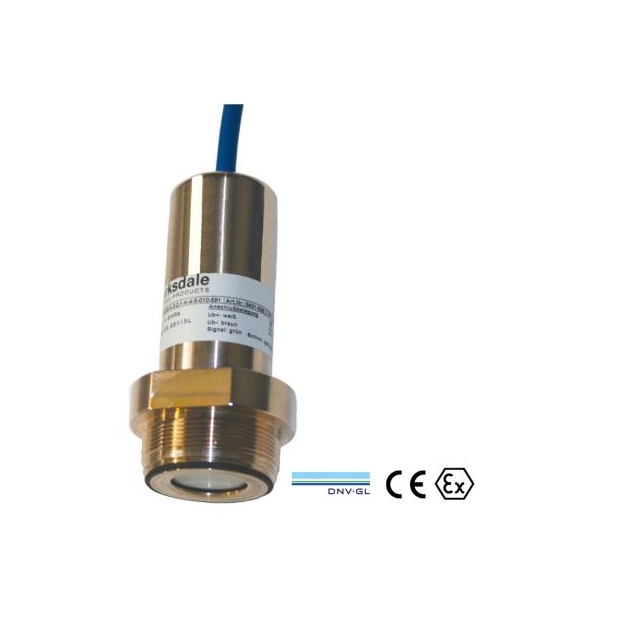

The level sensors BLP1 have been specifically designed for rugged use in the maritime and offshore applications.
The housing material CuNiFe, a special copper-nickel alloy, combined with various mounting options, allows for their use with a wide range of media found in maritime environments, as well as with different tank, container, and basin configurations.
Features
- Accuracy acc. to IEC 60770 0.25% / 0.1% FSO
- Level probe made of CuNiFe alloy (1.4404 on request)
- Excellent seawater resistance
- Installation in tank as submersible probe with cable, with stainless steel pipe or with mounting bracket
- Installation outside the tank by means of threaded connection and optionally with adapter flange DN25 or DN50
- Due to flush measuring diaphragm even suitable for high viscosity media (removable protection cap)
- Low temperature error, long-term stability
- High resistance to electrical faults (incorrect wiring, short circuit and overvoltage)
- Rugged and reliable
- Option: Ex II 1G Ex ia IIB T4 Ga
Applications
- Ballast containers
- Fuel and oil tanks
- Service and waste water tanks
- Draft measuring systems
- Tank level measuring systems
